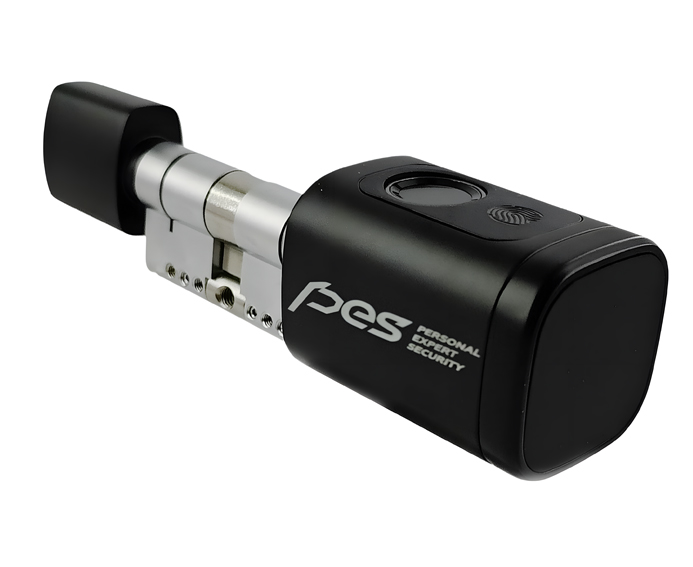

PES Smart Cylinder with Keypad and Fingerprint Scanner

The PES Smart Cylinder is a modern upgrade solution that transforms an existing mechanical door lock into a smart access control system without replacing the entire lock. The electronic cylinder is easy to install in most standard cylinder lock cases and can be fitted within minutes without complex door modifications.

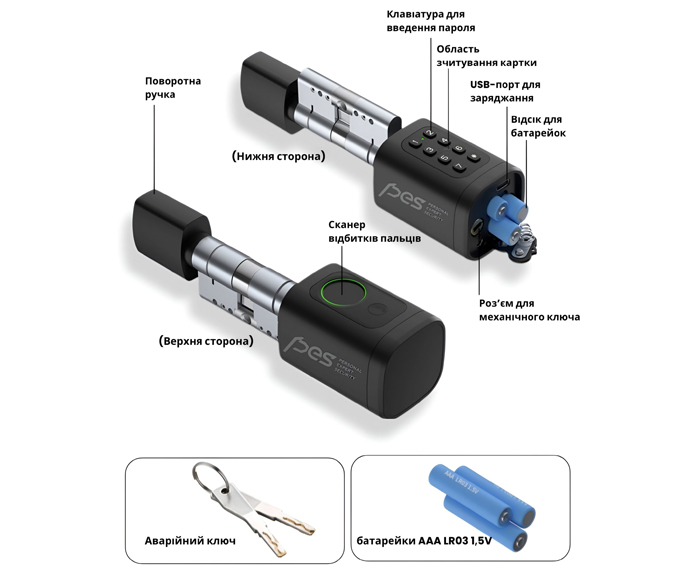

Equipped with a built-in fingerprint scanner, touch keypad, Bluetooth connectivity, and support for the Smarta Lock mobile application, the PES Smart Cylinder provides fast, secure, and convenient keyless access for homes, offices, hotels, apartments, and commercial buildings.

The cylinder supports multiple unlocking methods, including fingerprint, PIN code, NFC card, smartphone, and mechanical key, making it a versatile access control solution for residential and commercial properties.

The PES Cylinder combines high security, user convenience, and flexible access management in a compact electronic cylinder that can be integrated into existing doors.

Key Benefits

The PES Smart Cylinder is suitable for virtually all door types and features a built-in fingerprint scanner, touch keypad for PIN entry, NFC card and key fob support, Bluetooth connectivity, and smartphone control. It can be installed into an existing lock, supports remote operation via the optional PES HUB Wi-Fi gateway, provides access management through the mobile app, and allows users to view entry history and activity logs.

Technical Specifications

• Application: Entrance doors, interior doors, office doors, commercial doors, hotel doors, and residential doors.
• User Capacity: Up to 1,000 smartphones, up to 200 fingerprints, up to 150 PIN codes, and up to 200 access cards.

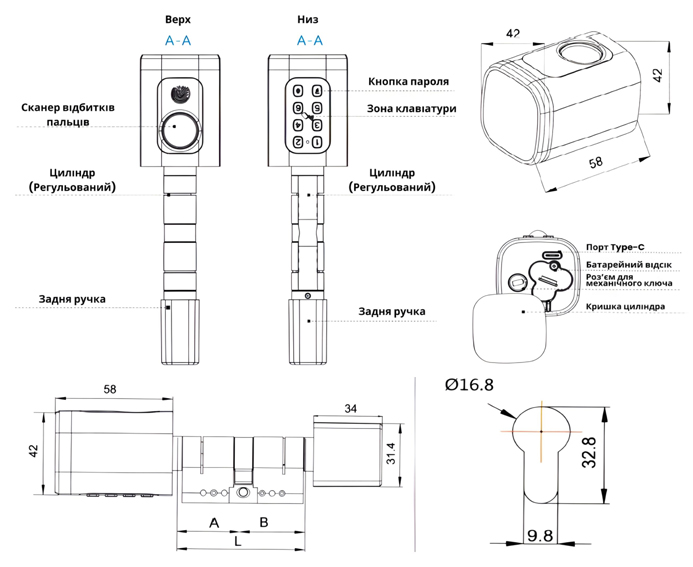

• Door Thickness: 60–120 mm.
• Protection Rating: IP55.
• Installation Type: Compatible with most existing cylinder lock cases.
• Connectivity: Bluetooth.
• Housing Material: ZAMAK alloy.
• Colors: Black, Gray.
• Mobile Application: Smarta Lock.

Features and Functions

• Fingerprint unlocking provides fast and secure biometric authentication without the need for physical keys.
• Smartphone control is available through the free Smarta Lock mobile application via Bluetooth.
• PIN code access allows authorized users to unlock the door using a personal code entered on the touch keypad.
• NFC card and key fob support provides convenient contactless access for family members, employees, and guests.
• The event log allows users to review door opening history and monitor all access events through the mobile application.
• Access rights management enables permanent, temporary, or recurring permissions to be assigned to different users.
• Battery monitoring provides notifications when battery replacement is required.
• Remote control via the optional PES HUB gateway allows the door to be managed and unlocked from anywhere in the world.
• An optional PES remote control is available for additional convenience.

Applications

The PES Smart Cylinder is suitable for private homes, apartments, offices, business centers, hotels, serviced apartments, commercial premises, and smart home projects.

PES Cylinder is a modern electronic cylinder with biometric access control that allows existing doors to be upgraded quickly and cost-effectively while providing the benefits of a contemporary smart access control system
