The Patriot door hinge by ASTEX is a reliable hardware solution designed for uPVC and PVC door systems. The hinge securely connects the door leaf to the frame, ensuring smooth and stable opening and closing. Precise adjustment allows the door leaf position and compression against the frame to be accurately configured for reliable everyday operation.

The Patriot hinge is designed for door structures weighing up to 110 kg and is compatible with profile systems featuring a sash overlap range of 15–23.5 mm. Horizontal, vertical and compression adjustments make it possible to accurately align the door without complicated disassembly.

The durable hinge body is manufactured from a high-quality non-ferrous metal alloy, while the bushings are made from wear-resistant engineering plastic. The protective coating increases resistance to external influences and helps maintain the attractive appearance of the door hardware over long-term use.

Benefits of the Patriot Door Hinge

• supports doors weighing up to 110 kg;
• sash overlap range: 15–23.5 mm;
• horizontal adjustment: +5 / -15 mm;
• vertical adjustment: +6 / 0 mm;
• compression adjustment: +1 / -1 mm;
• adjustment possible with the door closed;
• suitable for universal opening directions;
• strong and reliable construction;
• durable engineering plastic bushings;
• fixing screws compatible with PZ-2 bits;
• designed for intensive everyday use.

Available Colours

Patriot door hinges are available in three popular colours, making it easy to match the hardware to the profile colour and overall door design:

• white;
• anthracite;
• brown.

The range of colours allows Patriot hinges to complement both classic white uPVC doors and laminated door systems in darker finishes.

Applications

The Patriot door hinge is suitable for:

• entrance uPVC doors;
• interior doors made from PVC profiles;
• doors for private houses and cottages;
• office and commercial premises;
• administrative and public buildings.

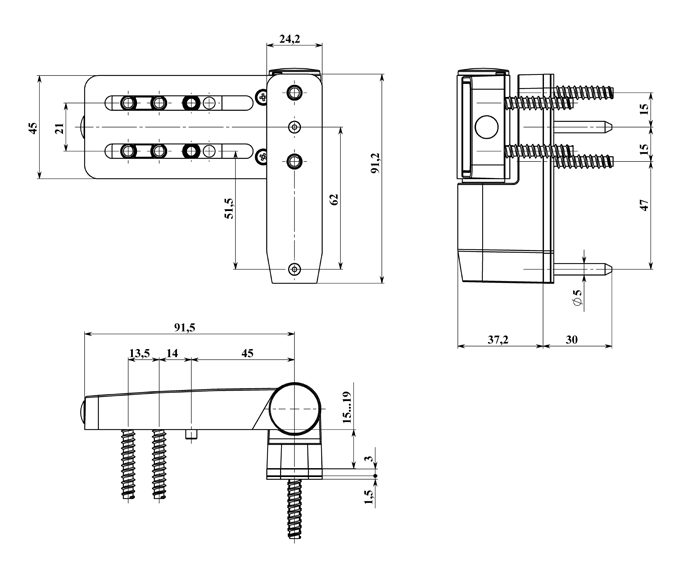

Technical Specifications

Manufacturer: ASTEX

Country of manufacture: Ukraine

Application: uPVC / PVC doors

Maximum door weight: up to 110 kg

Sash overlap range: 15–23.5 mm

Material: zinc-aluminium alloy (ZAMAK)

Width: 103 mm

Height: 97 mm

Thickness: 40 mm

Coating: polymer coating

Functional warranty: 24 months

Polyester powder coating warranty: 10 years

Reliable Hardware for uPVC Doors

Patriot by ASTEX is a practical door hinge for uPVC door systems where reliability, precise adjustment and long service life are essential. Its load capacity of up to 110 kg, wide sash overlap range and multidirectional adjustment make it suitable for various types of uPVC and PVC door constructions.
