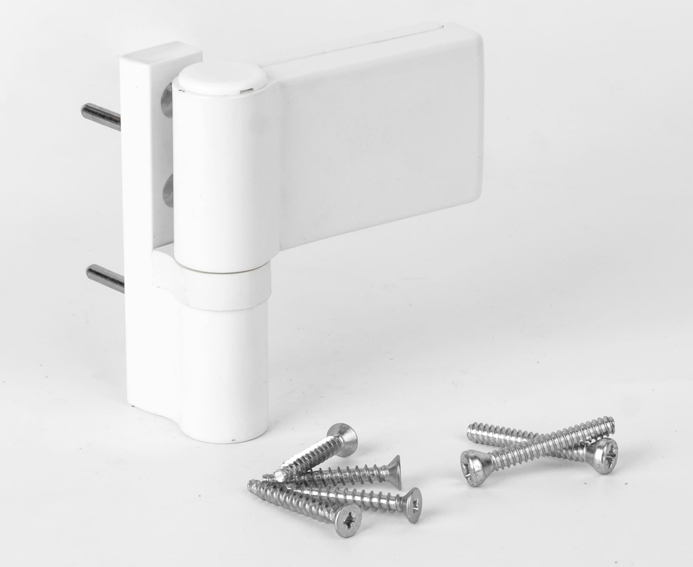

The DHV door hinge is used for fixing doors in PVC door systems.

• Door weight 140kg
• Sash orientation 15.0 - 20.0 mm
• Horizontal adjustment +10/ -5 mm
• Vertical adjustment +4/ -3 mm
• Adjustment on pressing +2.5/ -2.5 mm
• Manufacturer Ukraine, Astex

• Made of extruded aluminium
• Creeping screws under PZ-2 bit
• 10 years warranty on polyester powder coating resistant to ultraviolet radiation
• Increased corrosion resistance of zinc coating
• 5 years warranty on product functionality

Available colours: white, brown, anthracite
