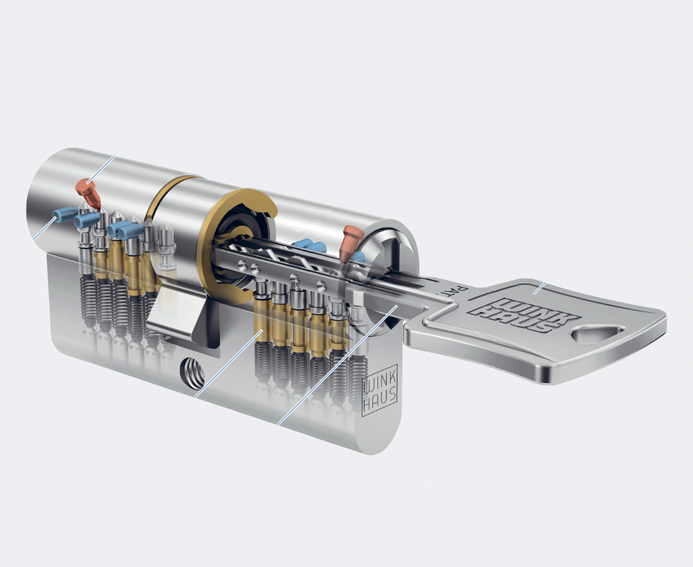

WinkHaus N-tra Cylinder

WinkHaus N-tra Cylinder

Certified according to EN 1303-2005 with the highest resistance class against drilling, burglary protection, confidentiality, temperature, and aggressive environments;

Six spring-loaded steel pins and up to 6 unsprung segmental pins;

2 locking pins positioned at an angle to each other, and up to 8 steel segmental pins;

Solid cam (CAM), made of hardened steel;

The cylinder's secret code is contained in the owner's magnetic card and is read using special equipment;

The cylinder body has a non-toxic anti-corrosion coating;

Class 6 wear resistance: 100,000 cycles of operation;


About the cylinder:

  • Extra Security class cylinder (Class 5)
  • Reinforced with an XR plate body
  • Wide range of lengths and symmetries
  • Options: one-sided, key-key, key-tumbler
  • Key pin options: pin, Mul-T-Lock gear
  • Body finish: satin nickel
  • Supplied with - 3 keys or 5 keys, access card
  • Tumbler finish: nickel, gold


Mechanical resistance:

  • 6 steel spring-loaded pins
  • Up to 14 radial pins at 3 levels of locking
  • 2 blocking pins (pin), positioned at an angle to each other
  • Additional protection against picking - "Coil body pin"
  • Solid cam (CAM), made of hardened steel
  • Certified according to EN 1303-2005 with the highest resistance class against drilling
  • Warranty - 2 years
  • Made in Germany
