Parallel-sliding system DuoPort PAS

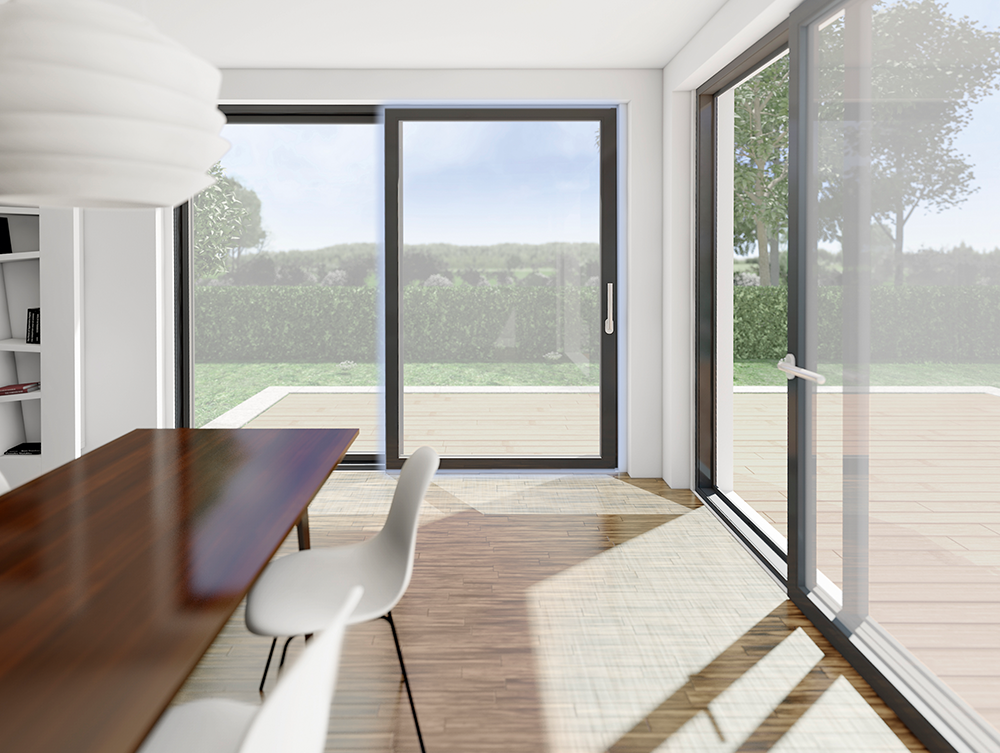

Winkhaus duoPort PAS portal parallel-sliding systems are a modern exterior solution that provides a panoramic view, ample natural light, and a stylish interior.
Alongside the functions of opening, shifting, and closing, the panoramic windows with duoPort PAS can also incorporate ventilation through a parallel displacement of the sash along the entire perimeter by 6 mm.
- High level of thermal and sound insulation
- Easy handling of heavy sashes
- Maximum natural light
- Original design
- Healthy microclimate regardless of weather conditions
- Upon request, these systems utilize reinforced metal reinforcement with a thickness of 2 mm.
Technical specifications:
- Compatible with WDS 7S/ Kommerling 70ST Plus profile systems
- Thermal transmittance coefficient Uf 1.16 W/(m•K) in the WDS 7S profile / Uf 1.15 W/(m•K) in the Kommerling 70ST Plus profile
- Triple glazing with a maximum thickness of 40 mm in the WDS 7S profile / 38 mm in the Kommerling 70ST Plus profile
- Installation depth of 70 mm
- Number of chambers in the frame/sash - 6
- Dimensions up to 4.5 m?
