WDS 76MD

WDS 76MD Windows

New technological flagship

Description

WDS 76 – a modern and technologically advanced family of profile systems for windows and doors. The use of 48 mm double glazing allows for the installation of architectural glass and triplex glass (6-8 mm). More robust reinforcement in the frame, sash, and mullion provides better structural stability. Three sealing contours offer superior airtightness and additional protection from dust and dirt. The reduced height of the frame and sash junction results in a larger glass area, bringing more light into the room. The WDS 76 family systems are ideal for glazing houses. WDS 76 – a series of profiles for the production of windows, doors, and sliding constructions.


  • Maximum energy efficiency
  • Maximum sound insulation
  • Maximum airtightness
  • Maximum safety and reliability

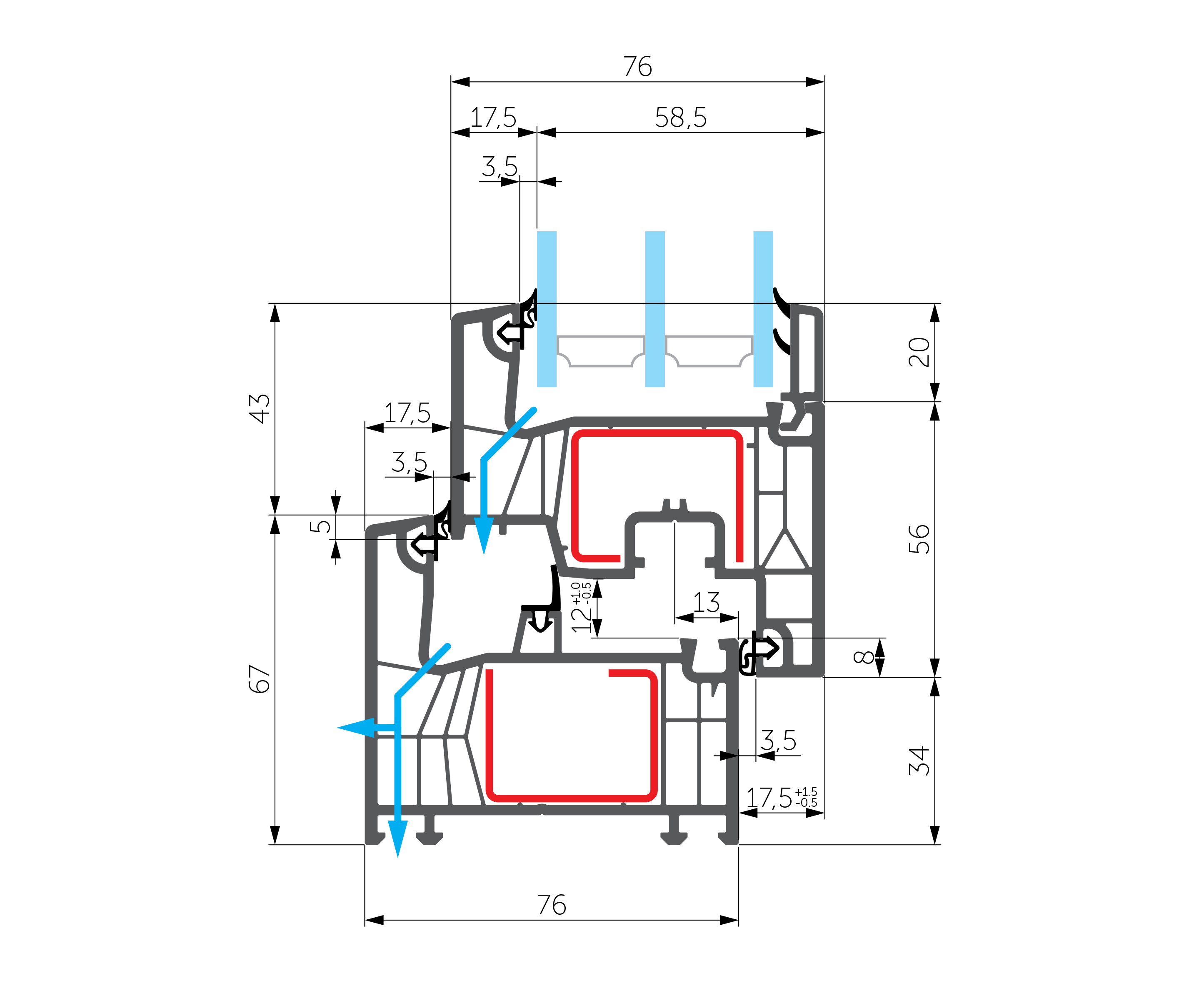

The most important features of WDS 76MD windows

Profile
Ukrainian
Chambers
6
External wall thickness
2,7 mm
Mounting width
76 mm
Sealing contours
3
Thermal transmittance reaches
0.79 W/m2K

Glazing unit
40 mm, 48 mm
Hardware system
12/20 – 13*
Ecological composition
greenline (lead-free)
Profile durability
more than 40 years
